Product Details
＋

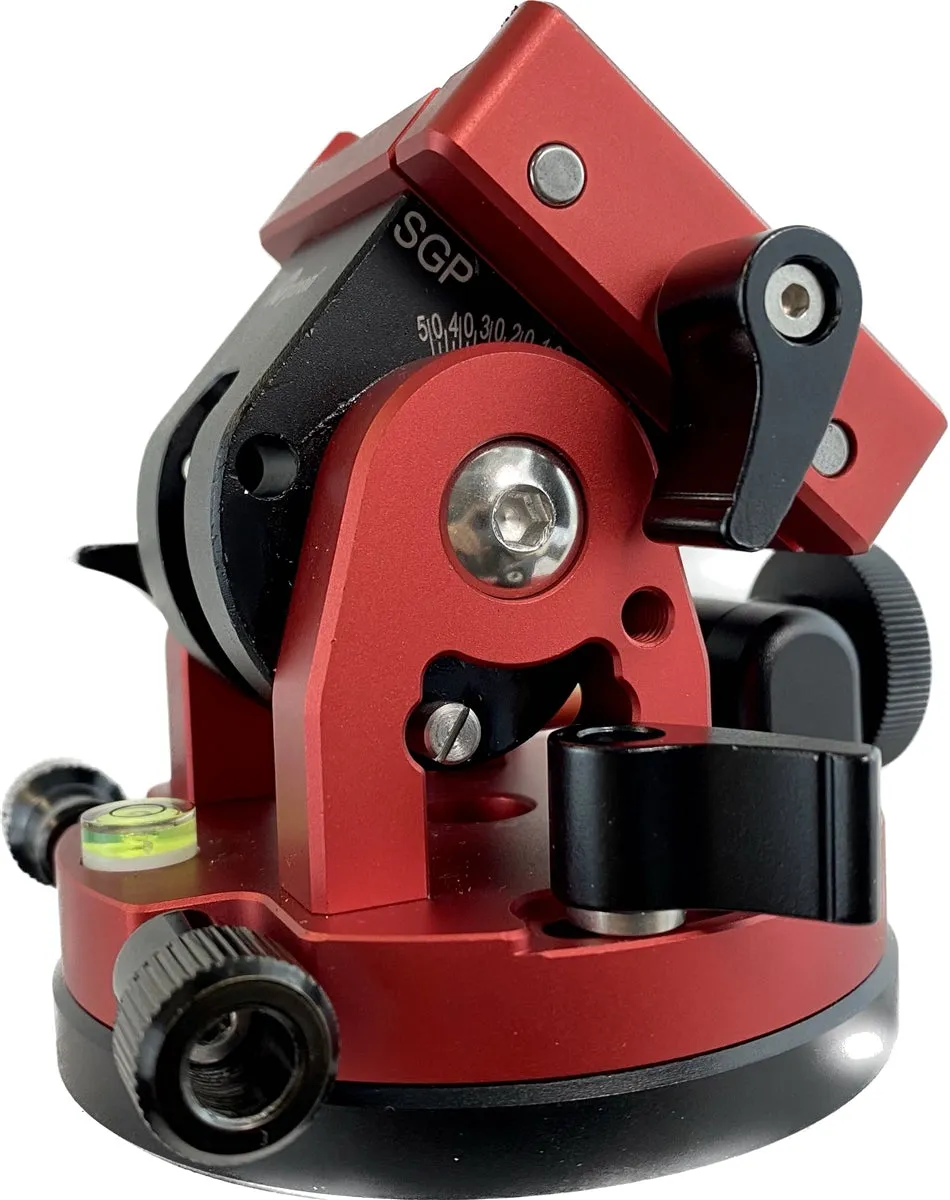

Precision adjustable equatorial base for SkyHunterTM, GOTO mount, SkyGuider Pro and SkyTracker Pro mounts. The base has a built-in bubble level. It accepts Vixen-type dovetail bar. The altitude adjustment range is from 0º ~ 90º. Features
- CNC machined, all metal construction
- Accept Vixen-type dovetail bar (not included)
- 0º ~ 90º in latitude adjustment
- ±5° in azimuth adjustment
- Φ80 mm mounting base
- Attaches to a camera tripod with 3/8” or 1/4” threads (optional 3/8"-1/4" thread converter needed)
| Dovetail saddle | Vixen-type |
| Mounting base diameter | Φ80 mm |
| Mounting base socket | 3/8” threaded socket |
| Latitude adjustment range | 0º ~ 90º |
| Azimuth adjustment range | ±5º |
| Level indicator | Level bubble |
| Warranty | One year limited |
